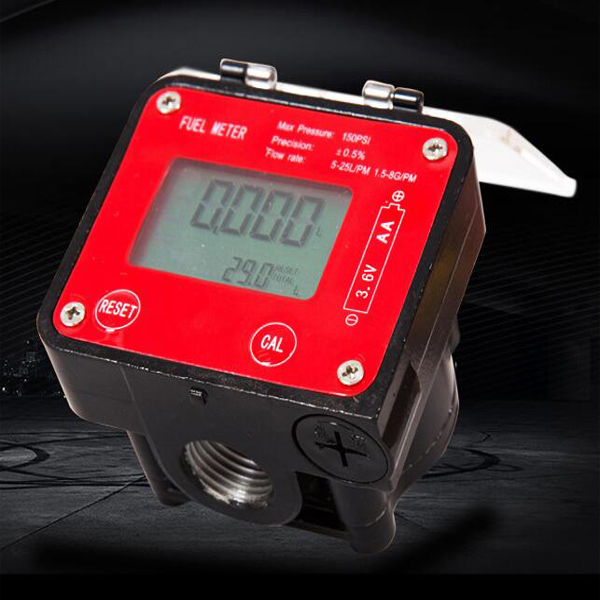

Digital Oval Gear Flow Meter

Digital Oval Gear Flow Meter

1. 3/4 inch oval gear flow meter is designed to meet wide range of product delivery measuring requirements.

2. Easy to install at the end of a transfer pipe or behind the nozzles.

3. Equipped with adjusting screen for easy reading.

4. Sturdy casing and a sealed electronic card make it suitable for use in practically all conditions.

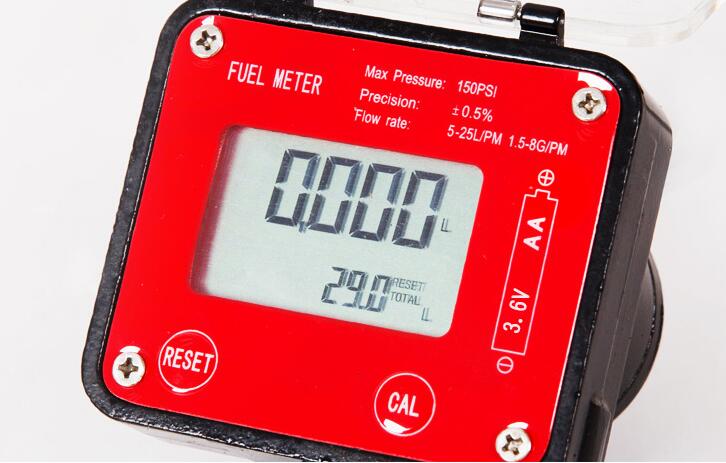

5. Electronic card with LCD display: resettable 5 digit partial total from 0.1 to 99999, non resettable total  6 digit total from 1 to 999999.

7. Powered by 2x1.5V AAA batteries

Inlet Size: 1/2', 3/4’’

Flow rate: 8-30 lpm

Body Material:  Aluminum

Application Medium: Diesel, Gasoline, oil with high viscosity

Max.Working Pressure: 70 Bar

Accuracy: ±0.5%
