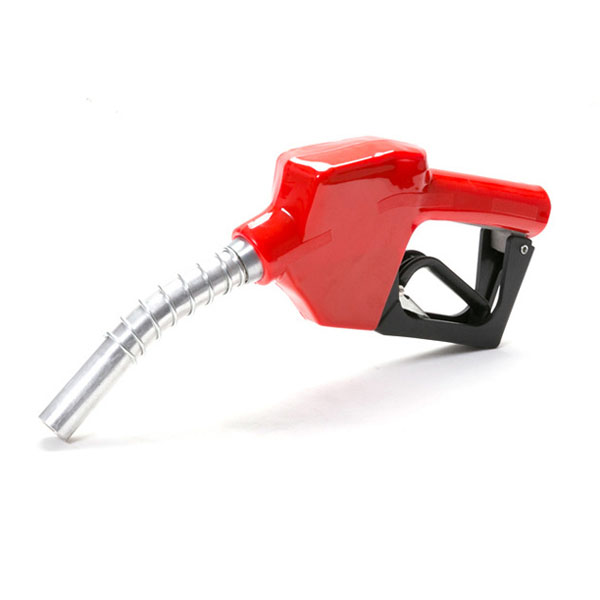

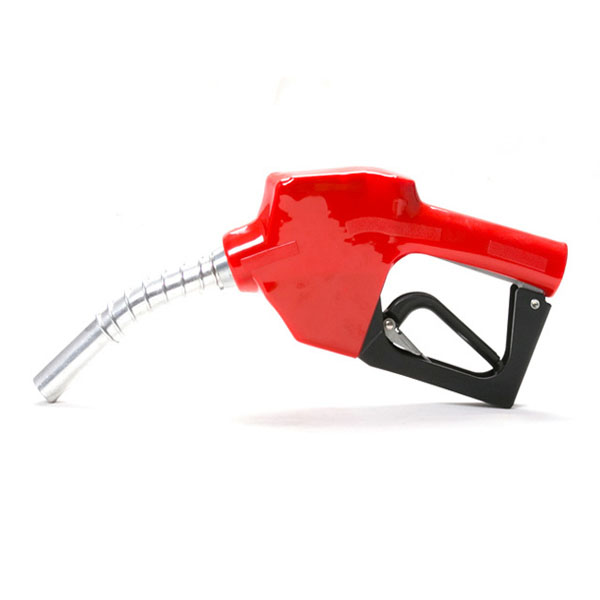

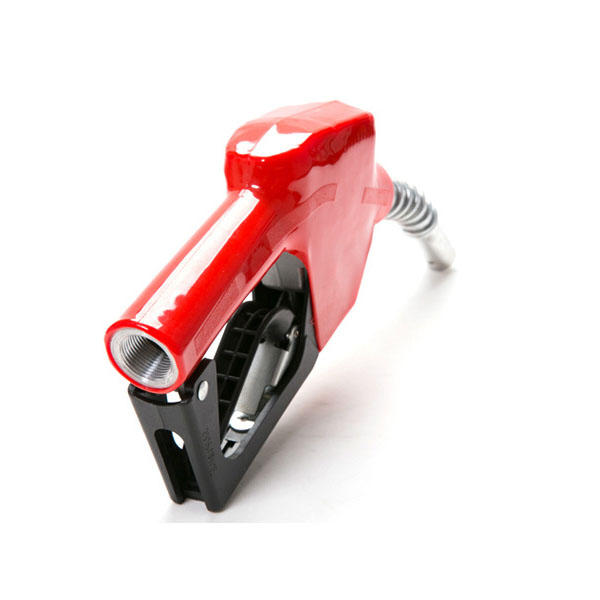

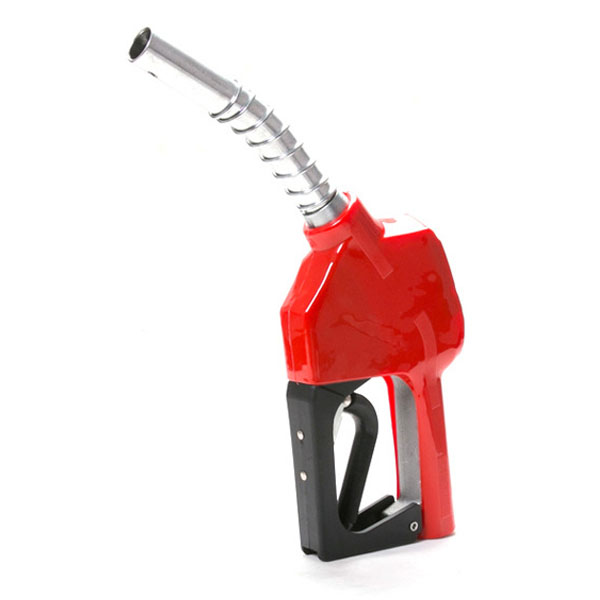

11A Series Automatic Nozzle
Materials:
Body: Aluminum
Seals: Buna-N, Won
Main stem seals: Viton Cased Oil Seal / Graphite with Teflon
Main stem: Stainless steel
Package:
Net Weight: 1.225kg/pc Gross
Weight: 1.5kg/pc
53.7x42.7x35.7 cm3/case of 15pc
37.5x34x43 cm3/case of 10pc
11A Flow rate:0-60L/m(15/16")
11AP Flow rate:0-45L/m(13/16")
Working Pressure: 0.18Mpa
♦ 11A Automatic Nozzles-for diesel, kerosene and all kinds of gasoline service.
♦ Easily replaced spout- simply removes the screw.
♦ Low-profile aluminum body- light weight, easier to handle, provides an attractive, image-enhancing appearance.
♦ Vacuum Design: Back-Sealing Design.
♦ Selective casting process of body-
Sand casting technique or high-pressure casting technique. The high-pressure casting technique can reduce diesel foaming and static electricity.
♦ Hold-open rack is available for full service applications
the one hand control means easy setting to flow rate for customers convenience.

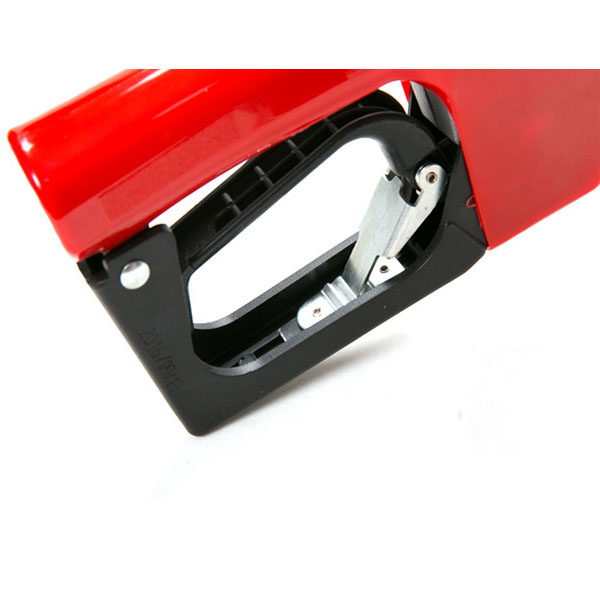

♦ Full hand insulator- protects both nozzle and vehicle, and insulates user's hands.
♦ Available Colors- color chart on inside back cover
♦ Selective splash guard.
♦ Selective Spout With Flowlock - designed to shut-off automatically when
the spout is tipped up,limiting spillage and " spit"
