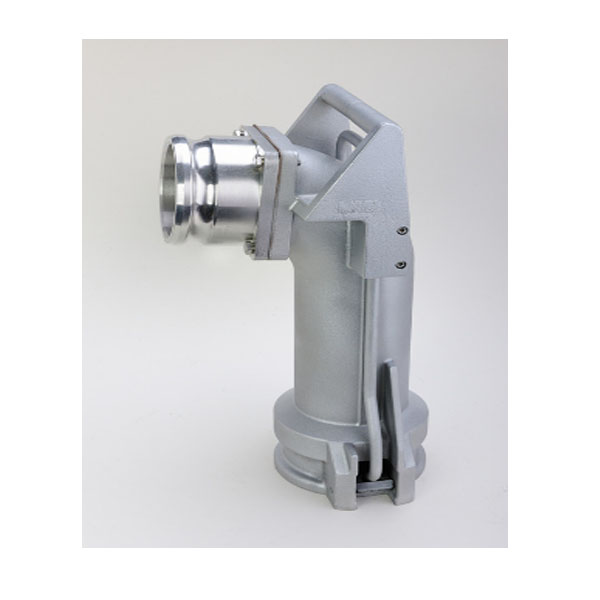

SYWG-V Vapor Recovery Elbows
product presentation:
SYWG-V Vapor Recovery Elbow is designed for connection between vapor recovery hose and check valve on vertical pipe of under ground storage tank for vapor recovery when discharging oil from tank truck to the gas station. The check valve opens to start vapor recovery after fixing the vapor recovery elbow and closes automatically to stop after disassemble the elbow when finish oil discharging. Its adapter can be replaced to meet with different hoses specifications.
Features & Benefits：
Ø Light weight cast aluminum alloy body
Ø Simple and pragmatic structure design;
Ø Available with 4 bolted flange for convenient replacement;
Ø Protective base cover
Package：
Net Weight：5.8kg/pc
Gross Weight：6.5kg/pc
Volume：54*33*24cm3/pc/ctn
3”Male Cam&Groove
4”Male Cam&Groove
